10pcs/lot Tank Superior Quality Anti-static De-soldering Braid Wick USA SW Original Chemtronics SODER WICK Solder Remove Belt fo yes welder helmet Welding & Soldering Supplies

Certification:	CE
Origin:	CN(Origin)
Application:	Soldering
Melting Point:	213 C
Material:	Tin
Model Number:	SW18035/SW18045
Weight:	0.2kg

10pcs/lot Tank Superior Quality Anti-static De-soldering Braid Wick USA SW Original Chemtronics SODER WICK Solder Remove Belt fo

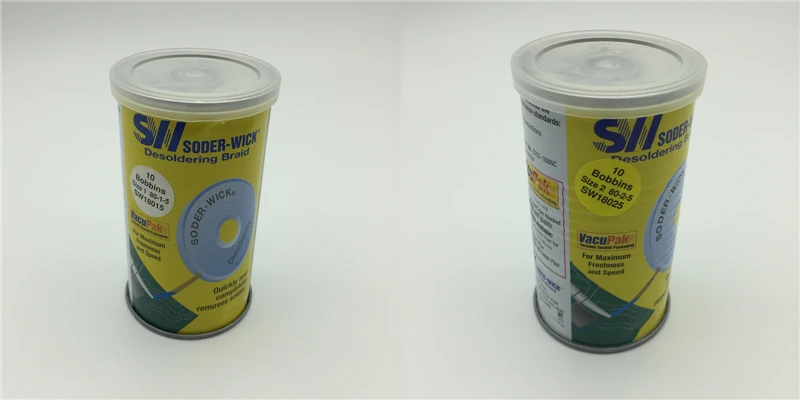

Some times the package will be changed to bags like below:

SODER-WICK is the most famous brand in the world desoldering
braid in the industry, the pad it on the tin the fastest, most
secure, most clean clean. In line with a number USA military standard,
American NASA standard, Bellcore standard. Five unique technical
advantage: high pure copper wire, flux, unique patented
precision preparation system, static dissipative material packaging,
vacuum cans packaging.

Chemtronics solder line sw18025, sw18035, sw18045, sw18055

ITW Chemtronics soder-wick

Tin suction line in cans

Vacuum can packaging, free from oxidation. Ensure the quality
of the tin absorbing tape

Each can contains 10 rolls, each with a length of 1.5 meters.

Width

Application

Label color

Type

Sw18015

0.8mm

Microcircuit

White

Rosin

Sw18025

1.5mm

Small Pad

Yellow

Rosin

Sw18035

2.0mm

Middle Pad

Green

Rosin

Sw18045

2.8mm

Large Pad

Blue

Rosin

Sw18055

3.7mm

Terminals

Brown

Rosin

Packing: packing cans. The 10pcs / tank.

Length: 1.5 meters

Anti static packaging, rosin flux is the
fastest, most secure desoldering braid

The use of anti-static packaging

The electrostatic correlation to minimize risk

No corrosion, ultra pure R type rosin flux

PCB threatened to minimize thermal injury

Do not leave the ionic contamination on the circuit
board

Soder-Wick desoldering braid

Is the fastest, most clean, the most
secure desoldering braid. It greatly reduces
the rework / repair time, and greatly reduced
the risk of causing thermal damage of circuit
board. Precise geometric braid design ensures maximum
surface tension and the tin absorbing ability. Compared
with other brands, Soder - Wick? Desoldering
braid optimization from braided belt heat transfer to
a solder joints, thus speeding up the tin
absorbing speed. But very
little flux residues, also at the same time to speed
up the cleaning process of PCB, and even can cancel
completely clean process.

Soder - Wick desoldering braid

There are various width, length, flux types
are available. The tin absorbing a correct size of
the tape can be completely cleared of
the solder in a moment. Because the Soder - Wick? Desoldering
braid seal in Performance Pak? Isolating package or
VacuPak vacuum tank, can completely prevent
the harmful effects of the environment. VacuPak vacuum
canning can guarantee desoldering
braid use quality and his ex
factory quality, has the fastest on the tin. The
vacuum tank is opened, also can be used as
protective storage container, but also can
be easily piled on the shelves. Vacuum cans of Soder
- Wick's unique packaging countless times to the user
to prove its superior quality and performance.

Soder - Wick desoldering braid quality

Soder - Wick desoldering braid, meet or
exceed the following standards of quality and performance:

MIL - F - 14256 F Type R Flux

NASA - STD - 8739.3
Soldered Electrical Connections

DOD - STD - 883E, Method 2022

ANSI/IPC J STD - 004, Type ROL0

Anti electrostatic packaging:

Get the MIL - STD-1686C and MIL-HDBK-263B
certification, not the production of electrostatic

In accordance with the provisions of
electrostatic dissipative MIL-B-81705C and the rate of MIL-STD-2000A

WARNING

Only touch the grip and the pack of desoldering wick when desoldering. Failure
to do so will result in serious burns.

To avoid fire, never use a soldering iron and desoldering wick around
combustibles or in an explosive environment.

CAUTION

Do not force the tip against the desoldering wick to avoid injury to yourself
and/or damage to the parts and PCB.

Do not heat the desoldering wick for more than 5 seconds to avoid damage to the
parts and PCB.

HOW TO USE

1. Place the desoldering wick over the solder to be removed, then push the
heated soldering iron tip onto the desoldering wick. The solder will be
absorbed.

2. Remove the desoldering wick after the solder has been absorbed.

3. Cut off the used section of the wick using nippers.

4. Repeat steps 1,2 and 3 if the solder is not removed completely.
Absorbability may differ depending on the type of solder. Sn63% and 60% (tin
content) have good absorbability.
